Double Thyristors Modules (800-1800V)
- International standard package
- High Surge Capability
- Glass passivated chip
- Simple Mounting
- Heat transfer through aluminum oxide
- DBC ceramic isolated metal baseplate
Double Thyristors Modules -High voltage
- Phase control thyristors couple
- Insulated base
- Metal pressure contact
- Used as controlled line frequency bridge arm
Single Thyristors Modules
- Designed for a wide range of industrial app lications
- Possibility of serial and parallel connection
- High operation capability
- Suitable for controlled rectifiers and AC drives
Thyristor Diode Modules (800-1600V)
- International standard package
- High Surge Capability
- Glass passivated chip
- Simple Mounting
- Heat transfer through aluminum oxide
- DBC ceramic isolated metal baseplate
Thyristor Diode Modules-high voltage
- Phase control thyristors couple
- Insulated base
- Metal pressure contact
- Used as controlled line frequency bridge arm
Double Diodes Modules (800-1800)
- Blocking voltage:800 to 1800V
- Heat transfer through aluminum oxide DBC
- Ceramic isolated metal baseplate
- Glass passivated chip
Double Diodes Modules-high voltage
- Rectifier diodes couple
- Insulated base
- Metal pressure contact
- Used as uncontrolled line frequency bridge arm
- High revers voltage
- Very low recovery time and soft recovery characteristics
- Insulated base
- High power in small volume

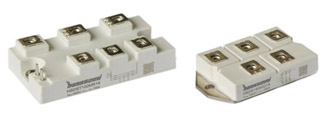

Thyristor + Three phase rectifier modules
- Blocking voltage:800 to 1600V
- Three Phase Bridge and a Thyristor
- Low saturation volage
- Low switching losses
- High short circuit capability
- Positive temperature coefficient for easy parallelling
- Isolation voltage 3000v
|
| |
